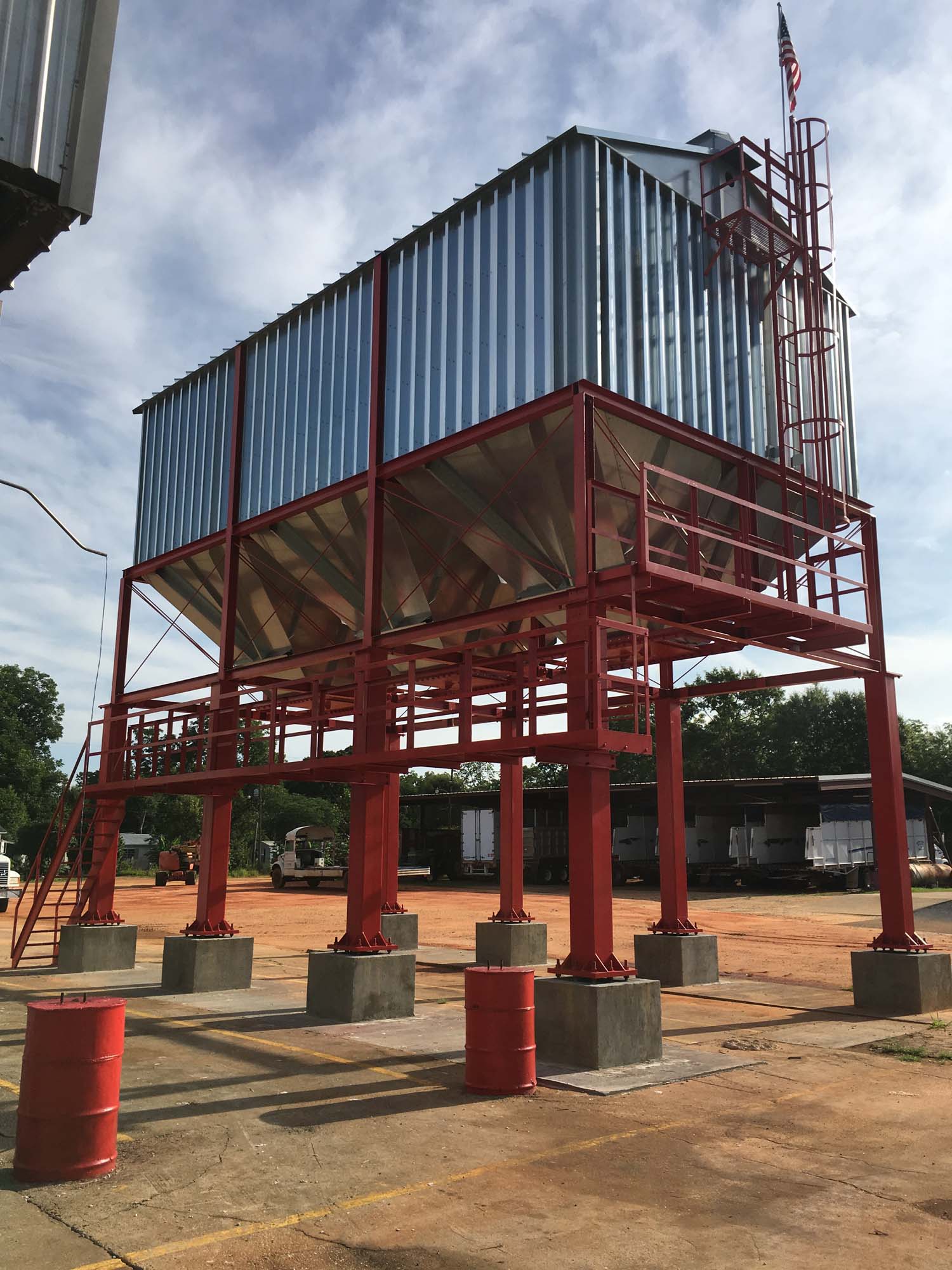

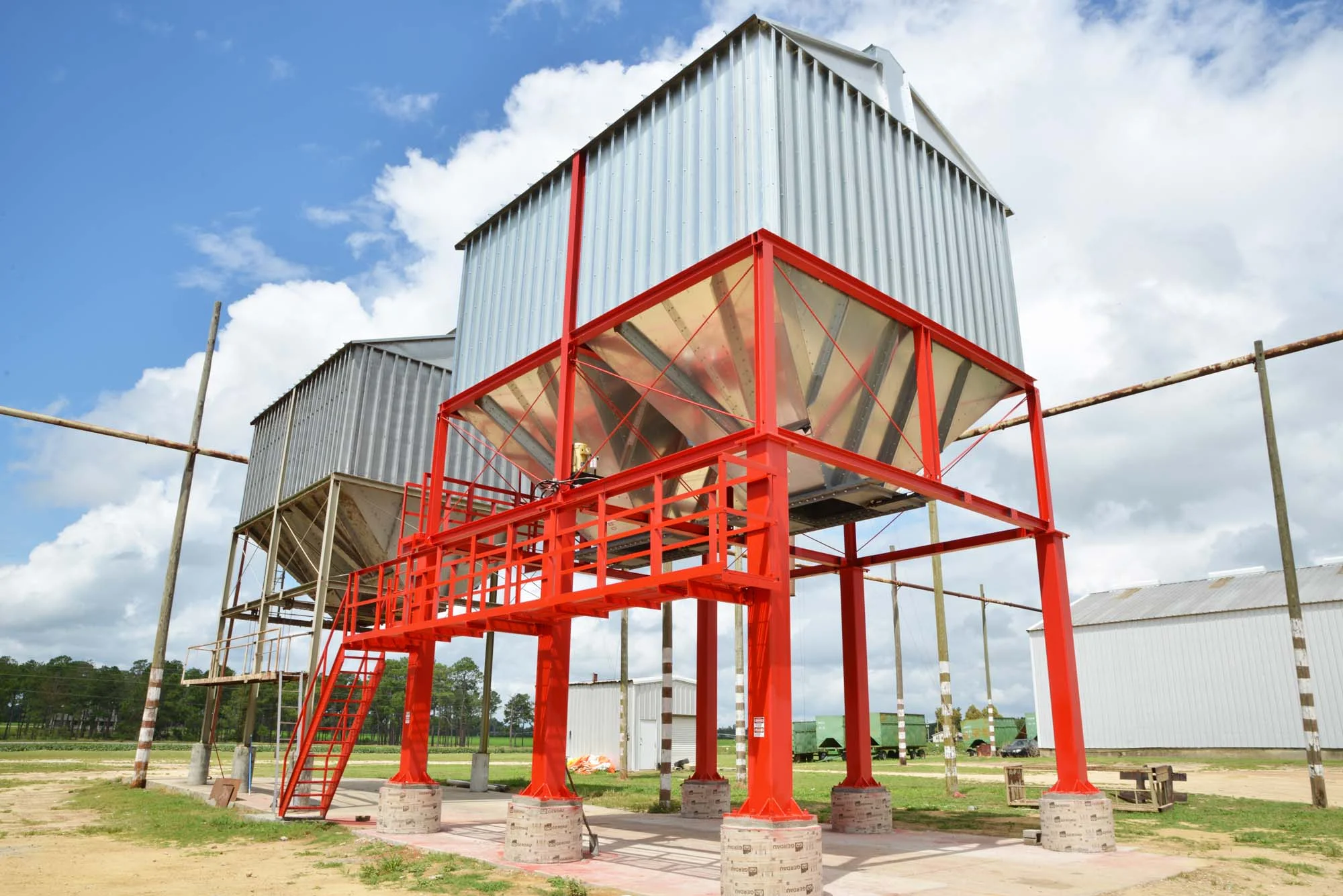

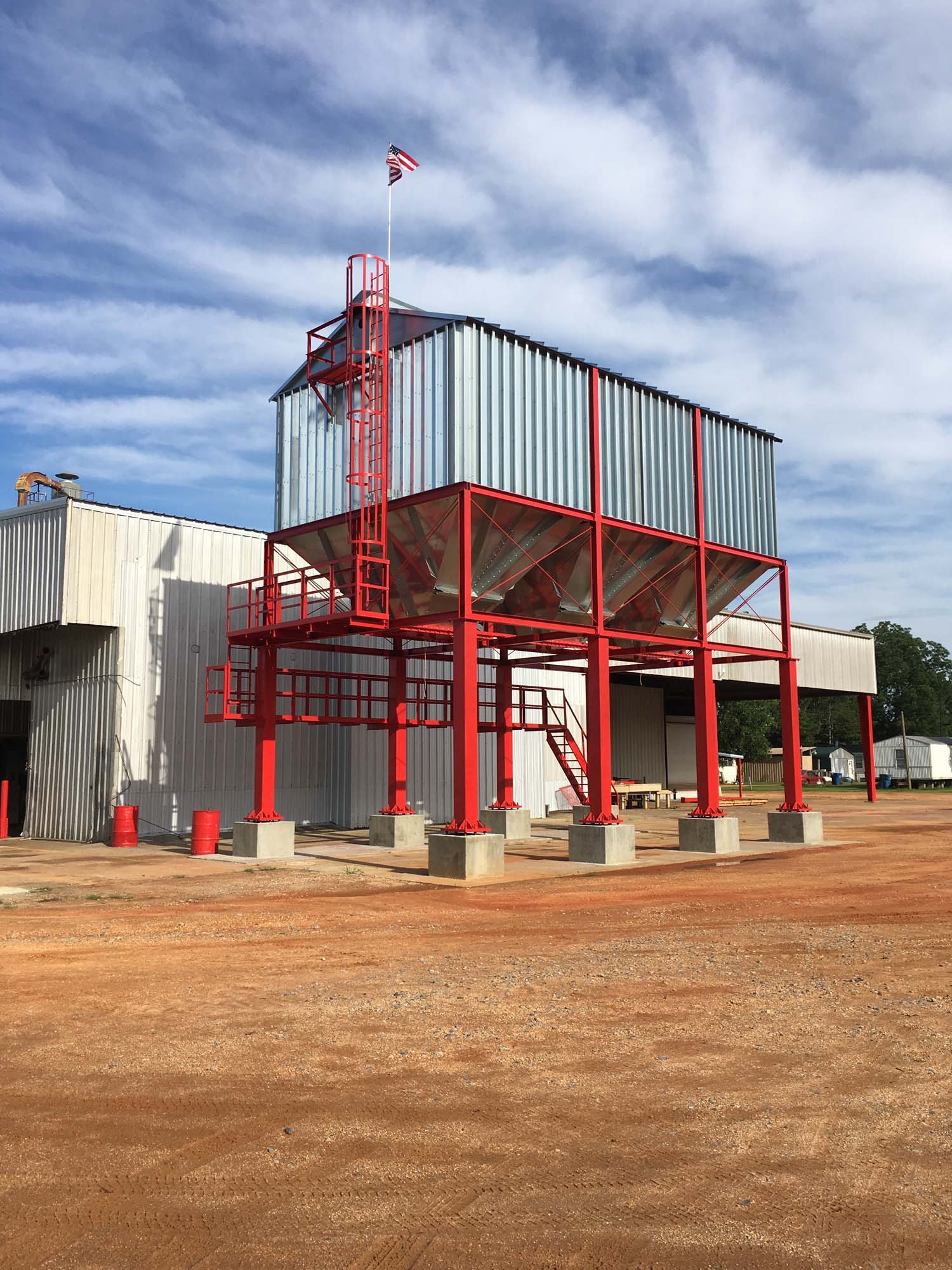

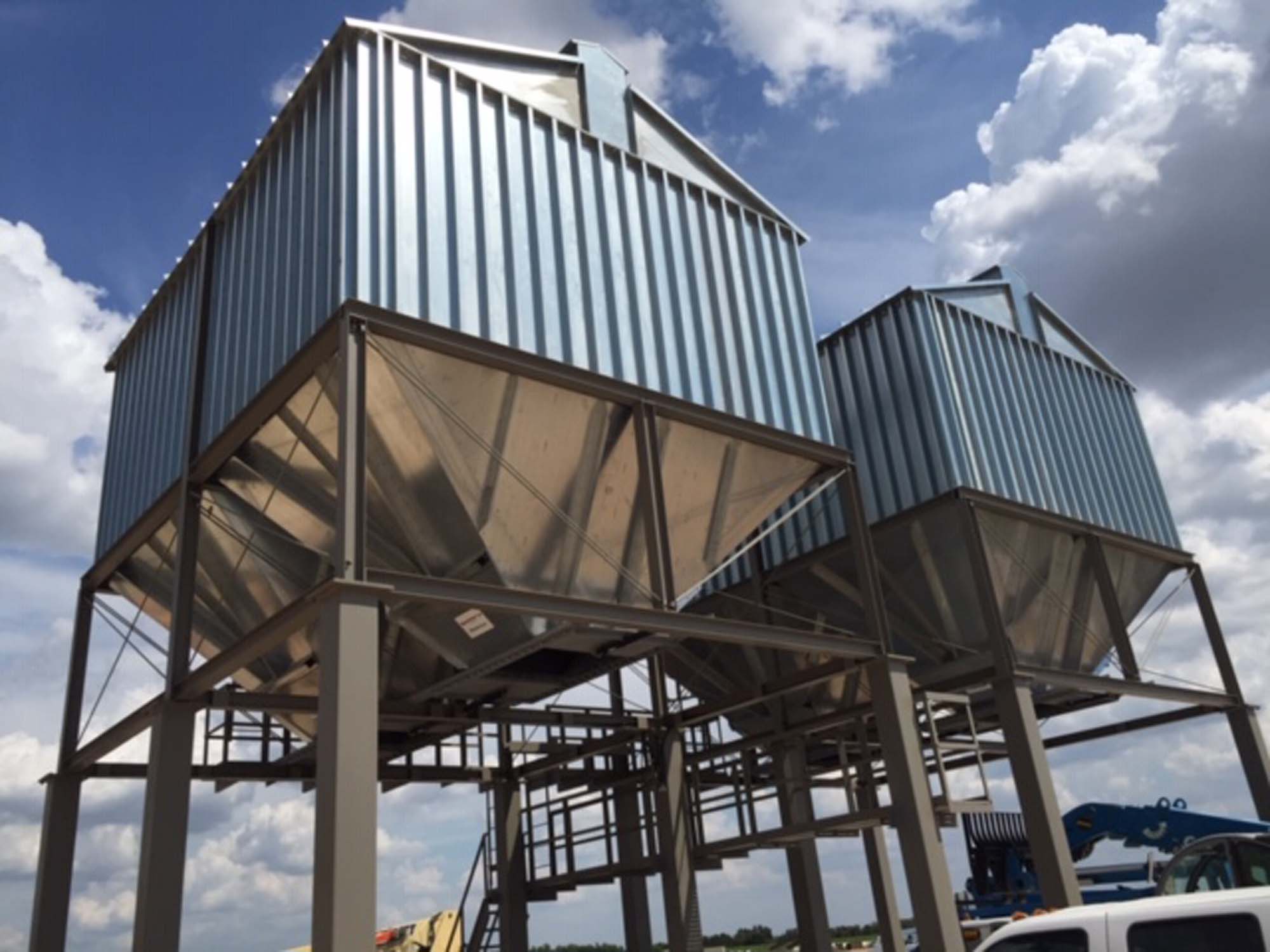

Cliff Granberry Corp Elevated Seed Houses
Steeper Hoppers with 10-Gauge Steel allow seed to flow freely and minimizes bridging.

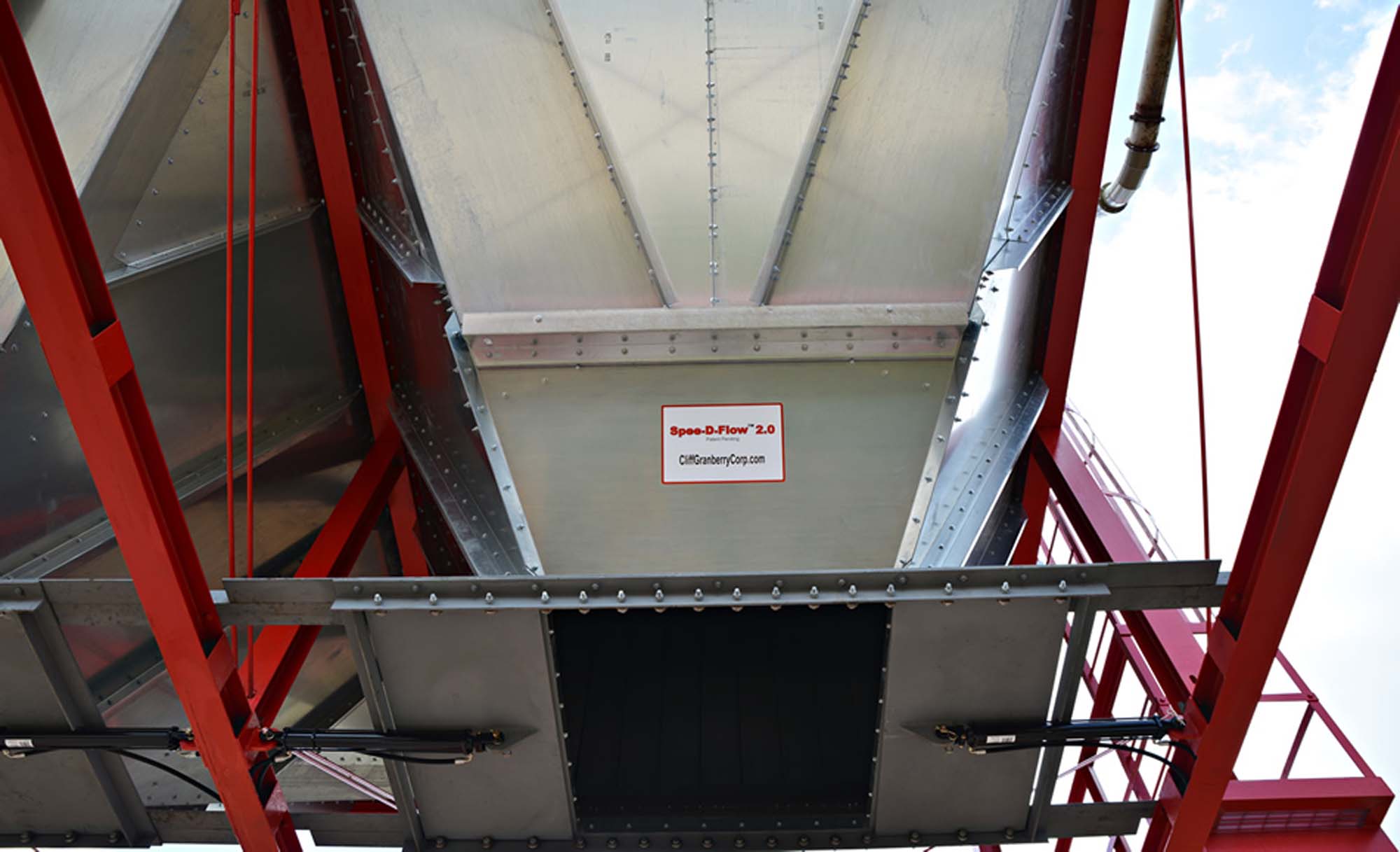

50% Larger Square Hydraulic Doors means quick, robust, infinitely adjustable seed flow.
Engineered to withstand 130 MPH winds while fully loaded.
Conversion Kits available for most seed houses. Learn More >
Sizes
Single-Hopper (48.5 U.S. tons)
Double-Hopper (97 U.S. tons)
Triple-Hopper (145.5 U.S. tons)
Quad-Hopper (194 U.S. tons)
What’s Included:
All structural steel components
All galvanized sheet metal components
All hardware
Anchor bolts including installation template
Hydraulic hopper door assembly
Pumping unit for operation of up to six hydraulic doors Note: As many as six hoppers can be operated from one pumping unit as long as only one hopper is opened or closed at a time. One pumping unit can operate multiple seed houses as long as they are located in close proximity to one another.

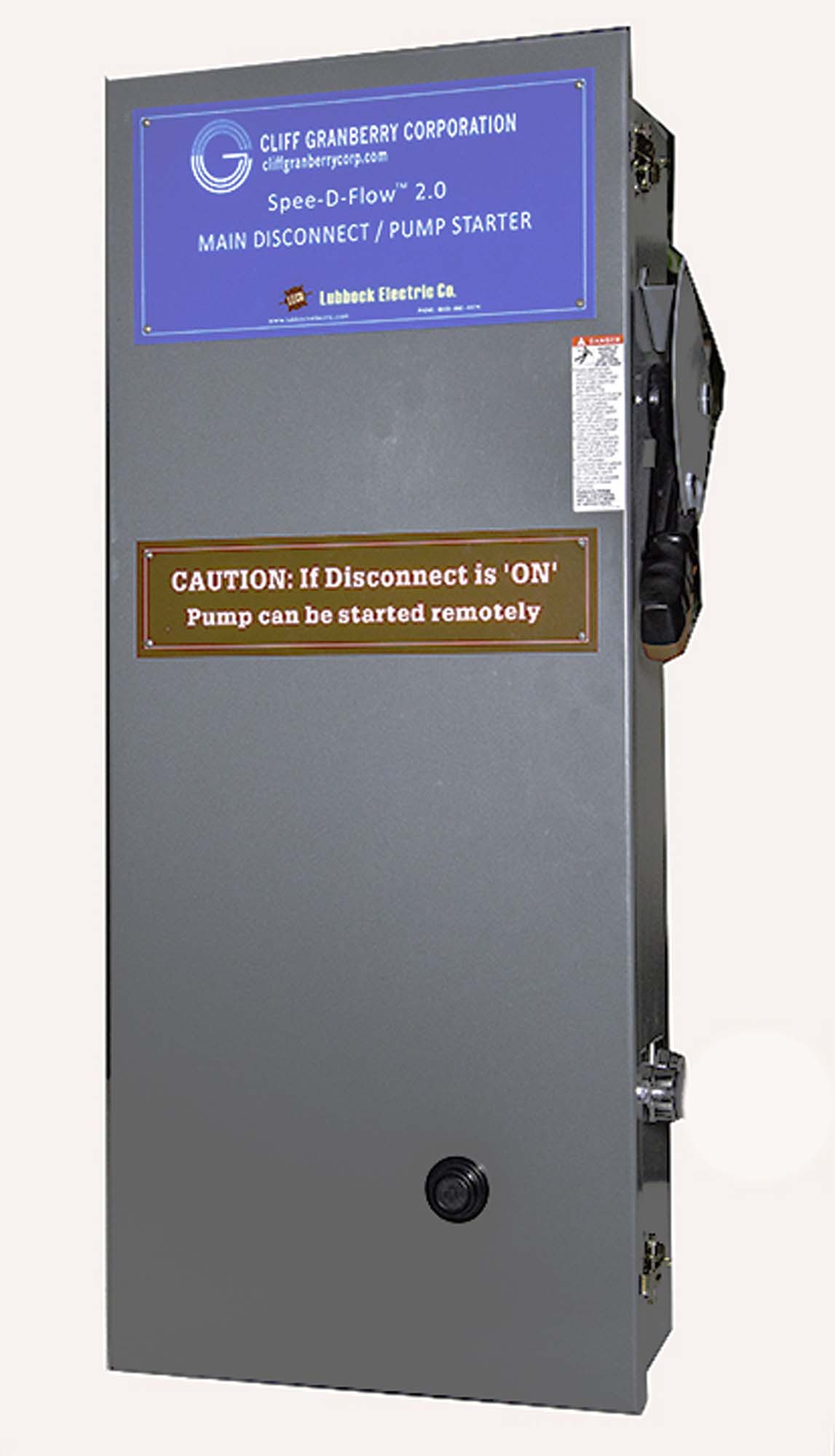

Pump Start Main Control - Custom designed as a Master Control to provide dual voltages for power and control. This unit incorporates a NEMA 3R rain-tight enclosure that contains a main disconnect / circuit breaker with the motor starter / electronic overload relay system hand-off-auto/start controls, and an over-sized control transformer. The pre-wiring facilitates ease of field-wiring so that the electrician only needs to provide 240/480VAC three-phase service to this main unit.
Hydraulic Door Control Valves / Manual Lever Operated
Hydraulic hose assembly
Pre-engineered Erection Drawings
Foundation Drawings
Trailer viewing catwalk mounted with the walking surface approximately 9-1/2 feet above grade
Complete erection of structure is available in most areas.
Specifications:
The primary components of the structure are totally bolted which allows for expansion or relocation.
AIR RELIEF VENTILATION SYSTEM: The air relief ventilation system, which has an 18” cupola the full length of the roof, allows the bins to be filled to capacity. The cupola also provides room for a customer installed seed auger leveling system.
Truck clearance: The standard clearance is 14’ 6” but it can be any height that the customer desires.

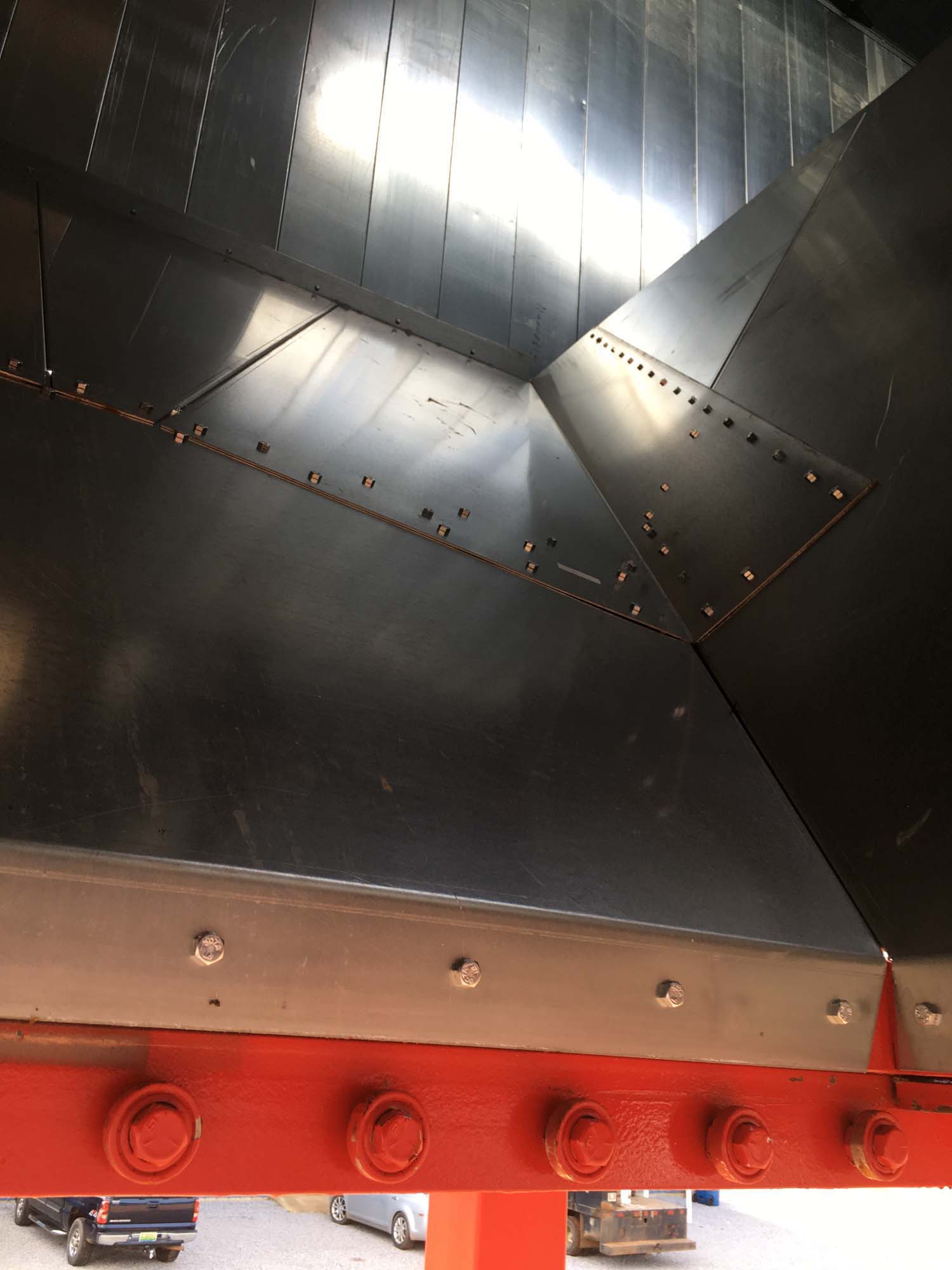

Hopper panels are 10-gauge galvanized steel
Structural columns - 12” X 12” x 3/8” square tubing with 1-3/4” gusseted base plate with 8 - 1-1/4” anchor bolts for each column.
Pumping Unit - 5 GPM, 2100 PSI, 7 - 1/2 HP
Overall height - 37.5’ (based on 14.5’ truck clearance)
Pre-engineered erection drawings and foundation drawings
Conversion Kits available for most seed house brands
Shipping weight:
Single-Hopper - 20,000 lbs.
Double-Hopper - 33,000 lbs.
Triple-Hopper - 48,000 lbs.
Quad-Hopper - 61,000 lbs.
“We really like the safety and the speed of this seed house.”
Associated Growers Co-op, Inc. – Athens, AL
“… Cliff Granberry Corp has an excellent reputation and they have been building seed houses for 50 years.”
Texas Star Co-op Gin – Wilson, TX
More Customer Reviews:
“When our old seed house failed we chose to replace it with the Spee-D-Flow 2.0 because of its reputation for safety, efficiency, and reliability.”
Doerun Gin Co. – Doerun, GA
Armistead Gin Company – Coushatta, LA
“We’re loading seed a lot faster with the new seed house and my seed hauler loves to come to my gin. When he opens the doors, the seed comes right out.”
Bayside-Richardson Co-op Gin – Woodsboro, TX “The new seed house is safer and it has reduced our labor cost.”
Center Point Gin – Levelland, TX
“Our new seed house is fantastic! Granberry’s quality, service, and followup is excellent.”
Farmers Co-op Association – Big Spring, TX
“With the big doors, the seed comes out fast. The new seed house is safer and more efficient.”
Farmers Gin of Humboldt – Humboldt, TN
“With the large two piece hydraulic doors, we can fill a trailer fast and top it off at a controlled flow rate, which allows us to load the maximum weight without going over the limit.”
Gulf Coast Cooperative – Robstown, TX
“Of all of the equipment that we put in the gin this year, the new overhead seed house is the one thing that we didn’t have any trouble with. It operated as advertised. We used to have a lot of trouble getting the seed to come out, but that problem is solved with the new seed house.”
La Feria Co-op Gin – Harlingen, TX
“The big hydraulic doors work great! The seed comes out fast and doesn’t bridge.”
Midway Gin Co-op – Taft, TX
“Our new seed house is safer & faster. Our seed truckers love it!”
McNutt Gin Co. – Boyce, LA
“The seed comes right out and we really like how we can manage the load with the hydraulic controls on the catwalk.”
North Delta Gin Company – Marks, MS
“Trucks are loaded and tarped in just 5 to 10 minutes with our new seed house”. Even wet seed comes out without a problem.”
Oak Grove Gin Company – Somerville, TN
“The new overhead seed houses work well and we’re pleased with all that you have done for us.”
PPF Gin & Warehouse – Lake Creek, TX
“Trucks are loaded very quickly with our new overhead seed houses. Cliff Granberry Corp has done everything that they said they would do.”
Quito Gin Co. – Itta Bena, MS
“We chose this seed house because of its reputation for performance.”
Rainbow Gin Co. – Blountsville, AL
“The new seed house is much safer, so efficient, and much easier to operate.”
RGV Gin – Harlingen, TX
“The new Granberry seed house works great. Every time the doors are opened the seed flows out freely. I like the heavy duty way that this seed house is built.”
Ross Gin Co – Mercedes, TX
“The new seed house has eliminated the seed bridging problem and it loads the trucks much faster.”
Scruggs & Vaden Gin Co – Florence, AL
“Our new seed house has made the whole seed loading process more efficient.”
Texas Star Co-op Gin – Wilson, TX
“We chose the new Spee-D-Flow 2.0 because Cliff Granberry Corporation has an excellent reputation and they have been building seed houses for 50 years.”
The Gin @ Palacios – Palacios, TX
“The seed comes flying out every time. We have not had any bridging of seed. This seed house does everything that you said it would do.”
Yorkville Gin Company – Yorkville, TN
“With this new seed house I can fill a trailer in two to three minutes. The only problem that I have is training the truck driver to move forward fast enough.”
Valley Gin Co. – Shreveport, LA
“The new seed house works great. The seed flows out really well. Our seed truckers love it.”
Violet Gin Co. – Robstown, TX “The new seed house unloads seed fast and without bridging. It’s the one new addition to the gin that has worked correctly from the start.”
Annual Maintenance Recommendations
All proper safety precautions should be taken by all personnel who perform maintenance and repairs on elevated seed houses.
Clean out all seed.
Clean hopper panels to remove seed oil. Many gins report good results with steam cleaning.
Make the hopper surfaces smooth again! Many gins report good results with a sander or steel brush.
Examine for stress fractures and loose hardware. Repair or replace as necessary.
Remove rust and corrosion.
Before any personnel enters the hopper for maintenance the doors should be braced open and if the doors are controlled by a powered means such as hydraulic, electric, or air then the source of potential hazardous energy should be locked out / tagged out so that the doors cannot be operated unless intended.
Add proper guards or fall protection devices on exterior inspection ladders.
Post decals “DANGER - DO NOT ENTER AREA BELOW HOPPER DOORS WHEN SEED IS IN STORAGE HOUSE.” Decals are available at no charge from Cliff Granberry Corp.
Add Hopper Conversion Kit if the seed house is in reasonably good condition.
If repairs are too extensive, replace with new Elevated Seed House.
All proper safety precautions should be taken by all personnel who perform maintenance and repairs on overhead seed houses including the use of appropriate Personal Protective Equipment (PPE).
HYDRAULIC HOSE LAYOUT
Download the Hydraulic Hose Layout & Diagram for detailed information.
